5G NR Testmodel Generation and Analysis

Generation and analysis of predefined signals

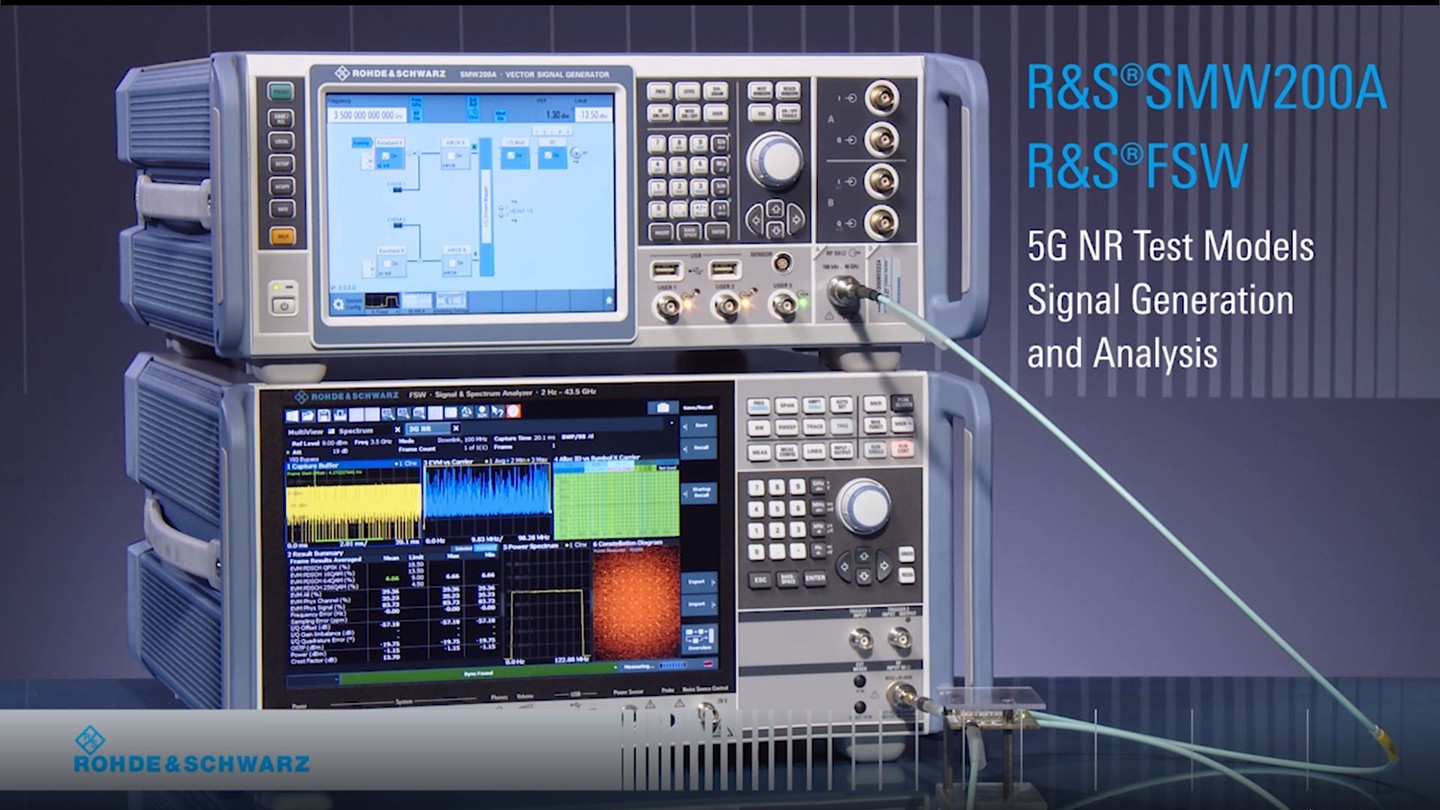

5G NR Testmodel Generation and Analysis

3GPP test models are predefined signals which describe the setup of the 5G NR physical channels. These predefined signals are used for base station transmitter testing or to characterize components like power amplifiers. The video shows the generation and analysis of a 5G NR TM3.1 test model based on the R&S®SMW200A vector signal generator and R&S®FSW signal and spectrum analyzer.

Related videos

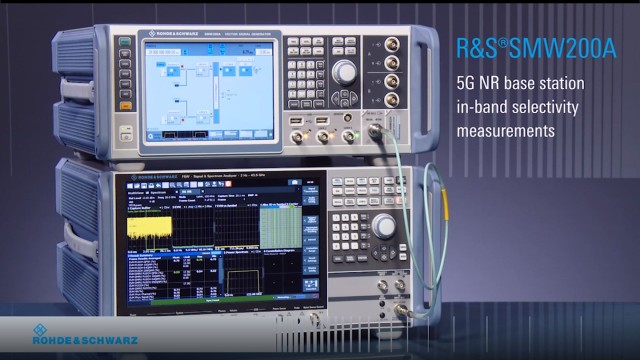

5G NR Inband Selectivity Measurement

5G NR Inband Selectivity Measurement

In this video, we demonstrate the multi-baseband capability of the R&S SMW200A vector signal generator to generate the wanted and the interfering signals for FR2 in one instrument.

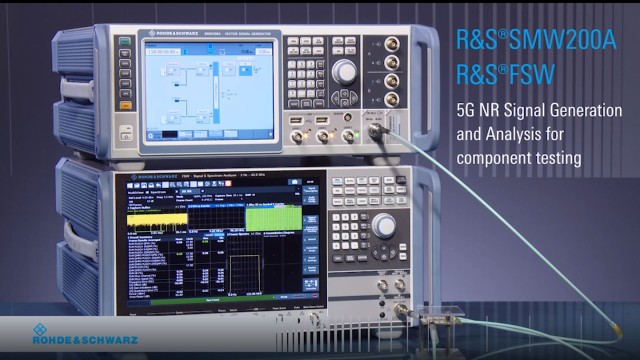

5G NR Signal Generation and Analysis

5G NR Signal Generation and Analysis

The video demonstrates how to quickly verify components with different important 5G NR physical layer parameters using the 5G NR generation and analysis options of the R&S SMW200A vector signal generator and the R&S FSW signal and spectrum analyzer.
