Accurate and fast power integrity measurements

Your task

Measuring ripple, noise and transients on today’s low-voltage DC power rails challenges most oscilloscopes. With smaller rail voltages and 1 % to 2 % tolerances, instrument and probing noise make it hard to accurately measure specified tolerances. Adequate bandwidth is required to see harmonics of fast edges and higher frequency sources that can be coupled on power rails.

Rohde&Schwarz solution

The active R&S^®RT-ZPR20 power rail probe is specifically designed to measure small AC characteristics of DC rails:

• The probe’s 1:1 attenuation adds only 10 % to the noise of the oscilloscope – only about 120 μV on an R&S^®RTO with 1 GHz bandwidth at 1 mV/div
• With the industry’s largest built-in offset of ±60 V, you can use maximum oscilloscope vertical sensitivity for lower noise and more of the oscilloscope’s ADC bits, resulting in a more accurate measurement. In addition, the offset eliminates the need to use AC coupling or DC blocking caps which impede the ability to see true DC values and drift
• The probe provides a specified bandwidth of 2 GHz with a slow rolloff to capture high-frequency transients and coupled signals up to 2.4 GHz
• A variety of probing options and 50 kΩ DC input impedance minimizes disturbance to measured rail signals

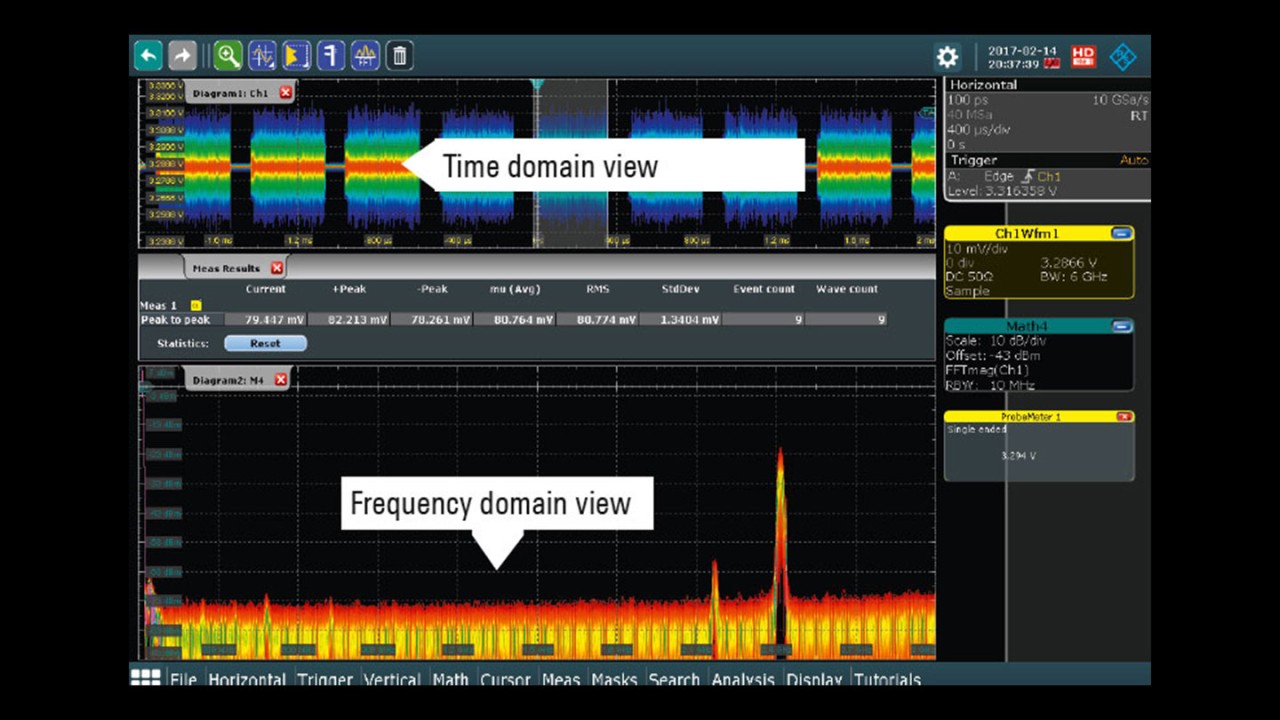

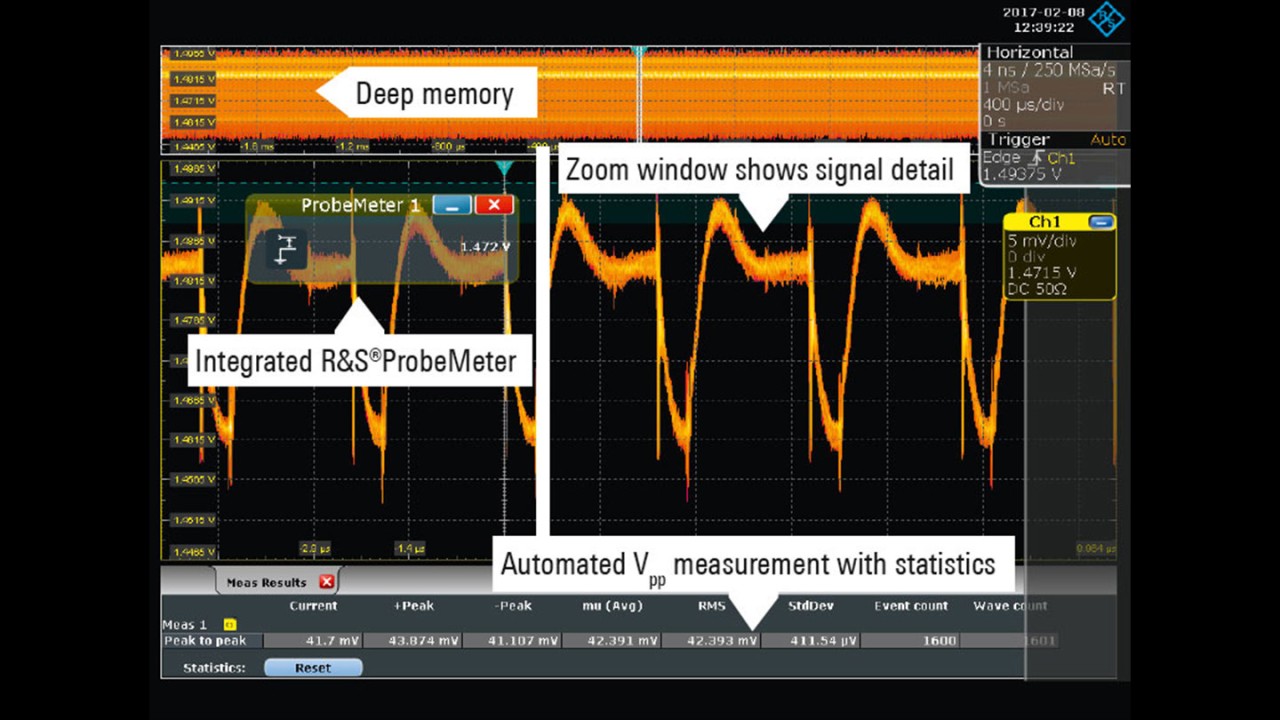

• An integrated 16 bit R&S®ProbeMeter provides a simultaneous digit readout of each power rail’s DC value at typ. 0.05% DC accuracy

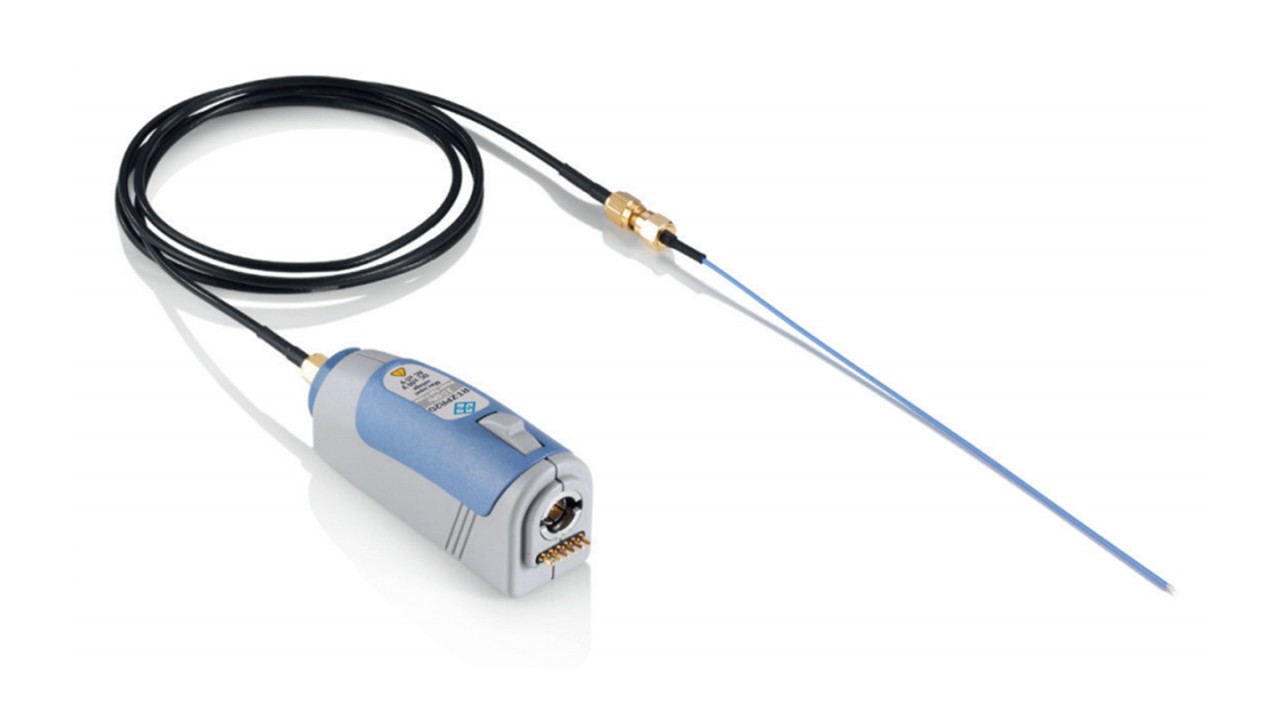

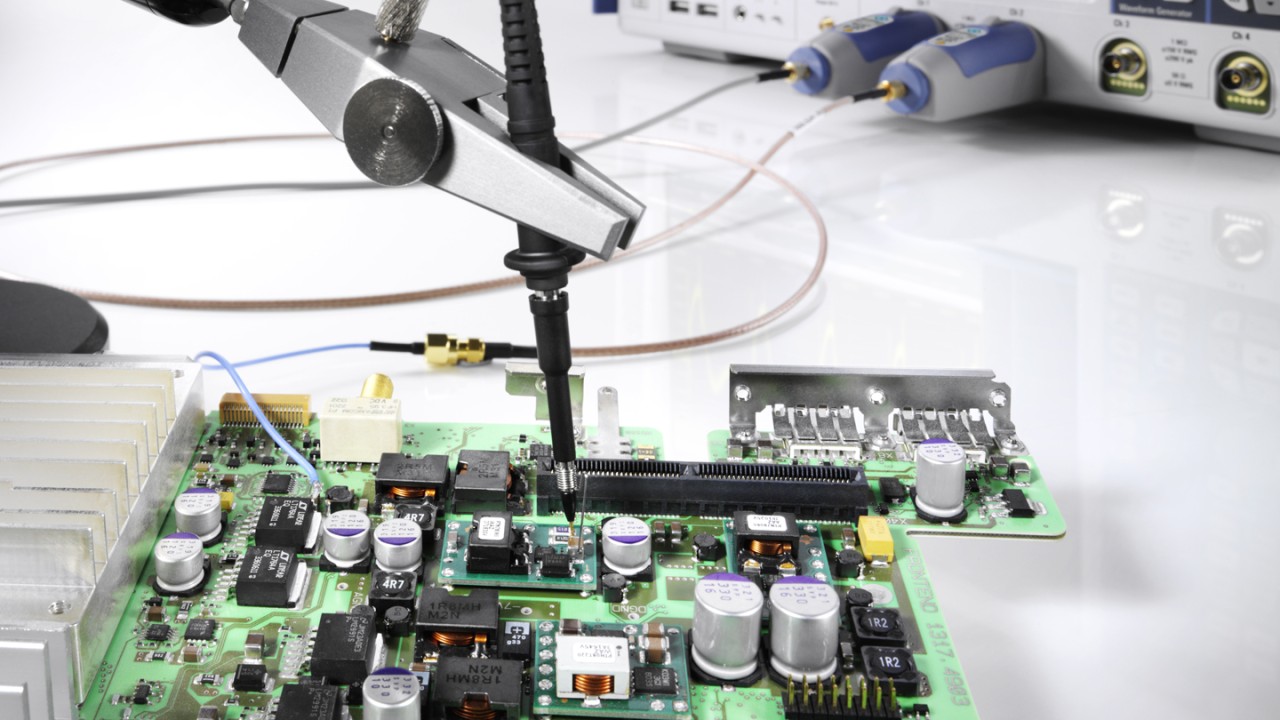

The active, low-noise R&S^®RT-ZPR20 power rail probe connects at full bandwidth using a direct SMA or an SMA to coax pigtail connector soldered to a bypass capacitor or other available board connection.

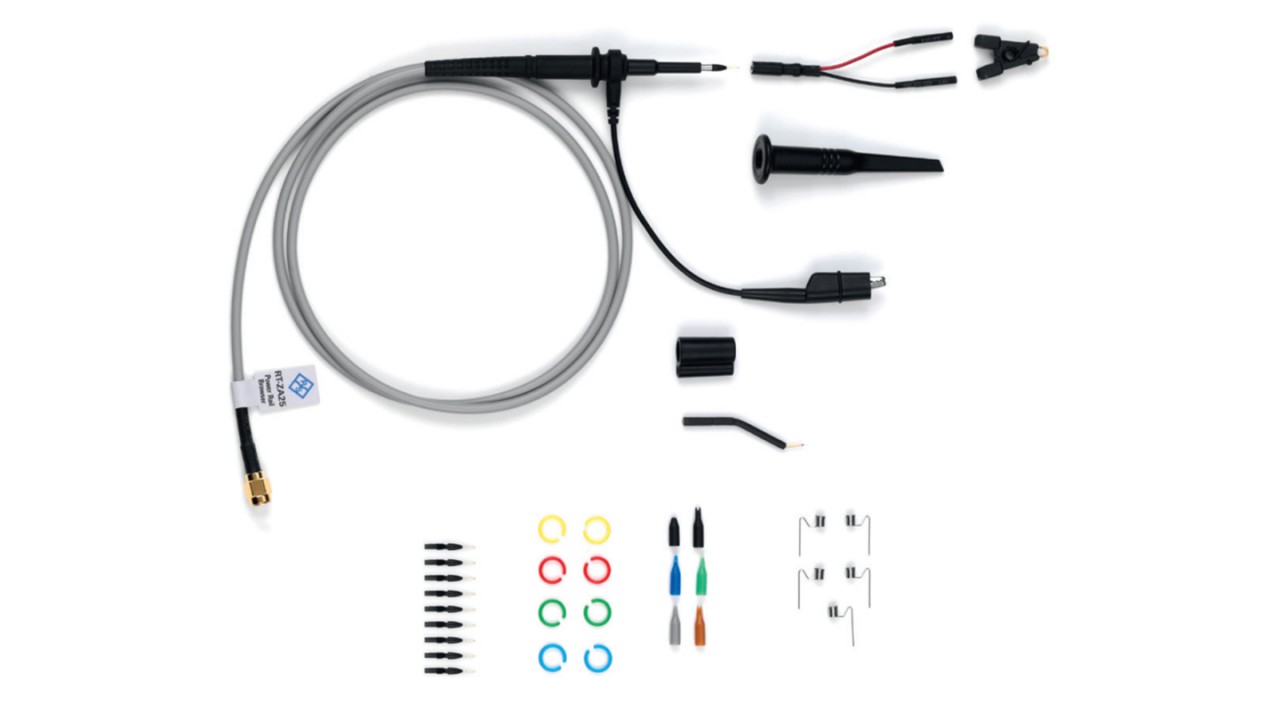

The R&S^®RT-ZPR20 comes standard with solder-in cables for broadband probing and a 350 MHz browser kit to easily measure at different places on a PCB or to verify the DC power supply using the R&S^®ProbeMeter.

The R&S^®RT-ZPR20 power rail probe is compatible with the R&S^®RTO and the R&S^®RTE oscilloscopes. The R&S^®RTE (frequency range from 200 MHz to 2 GHz) is an economical deep memory solution with advanced functionality. The R&S^®RTO (frequency range from 600 MHz to 6 GHz) offers a solution with more headroom. Both oscilloscopes achieve fast update rates of up to 1 million waveforms/s, providing greater power rail characterization confidence faster.
