Written by Manuel Mielke | July 22., 2021
Internal interference is one of the two types of interference which can occur. Another example of internal interference are overlapping cells, especially at the edge of cells. This type of internal interference is unavoidable, but SINR (signal-to-noise and interference ratio; wanted vs. unwanted signals) measurements in the field can be analyzed to learn more about and avoid this type of internal interference.

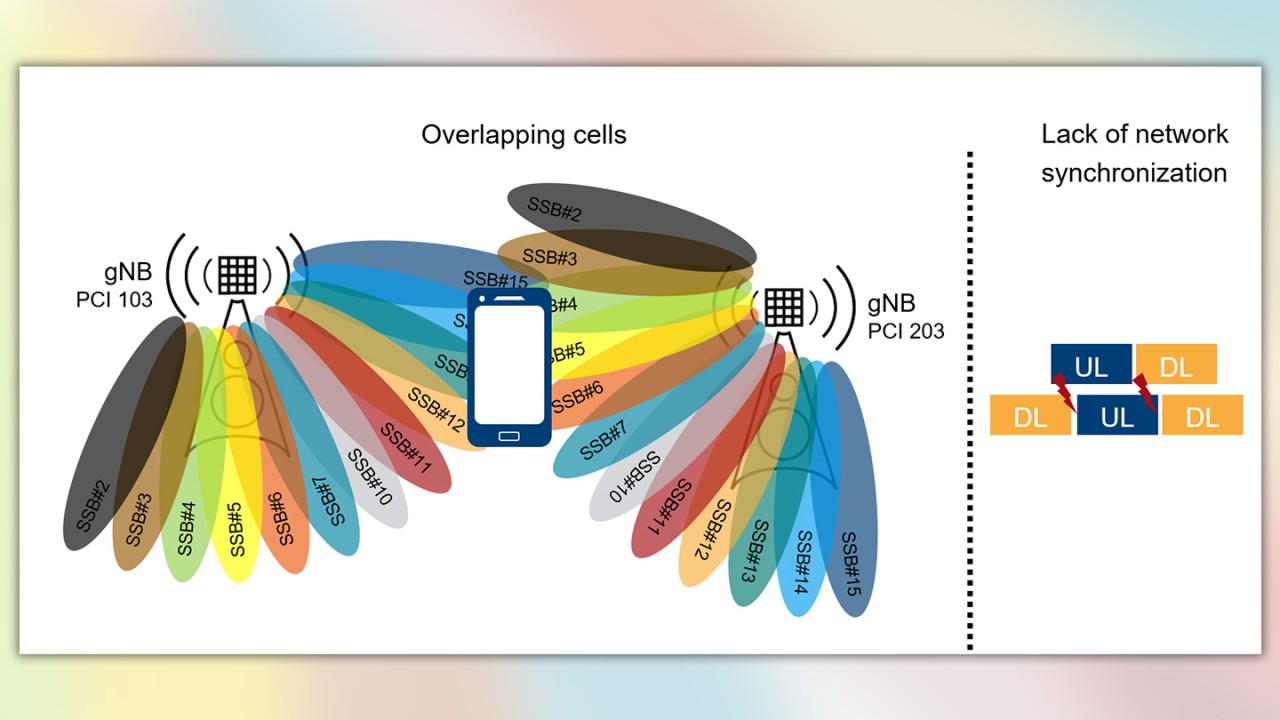

Figure 1: Internal interference at a glance: Overlapping cells and lack of network synchronization cause internal interference
To summarize: Internal interference can be measured and analyzed by measurement receivers such as the R&S®TSMx6 network scanner platform, which can measure arrival times of the signal and the SINR. After the data has been analyzed, the network can be optimized by checking the internal master clocks for better network synchronization or by optimizing the cell geometries (e.g. tilt, antenna pattern modification).
Now let's take a look at the second type of interference. It is called external interference. As the name suggests, external interference comes from external interference sources. Even a perfectly optimized network with an internal interference level of close to zero can still suffer from external interference. External interference is a very broad topic because it can have very odd causes such as faulty SAT LNBs used for TV reception, solar panels on the roof, engines, power supplies, power transformer stations, power inverters... Let's stop brainstorming and instead focus on how we can detect it.
Let's talk about the most significant case of external interference. Let's assume the interference hits uplink slots in 5G NR TDD. From a gNB perspective, the uplink is an extremely weak signal and even low levels of interference can completely interrupt communication between the user equipment and the network. It is therefore essential to detect the interference and to remove the interference source as quickly as possible. But how do we find the uplink slots and measure the power spectrum within them?

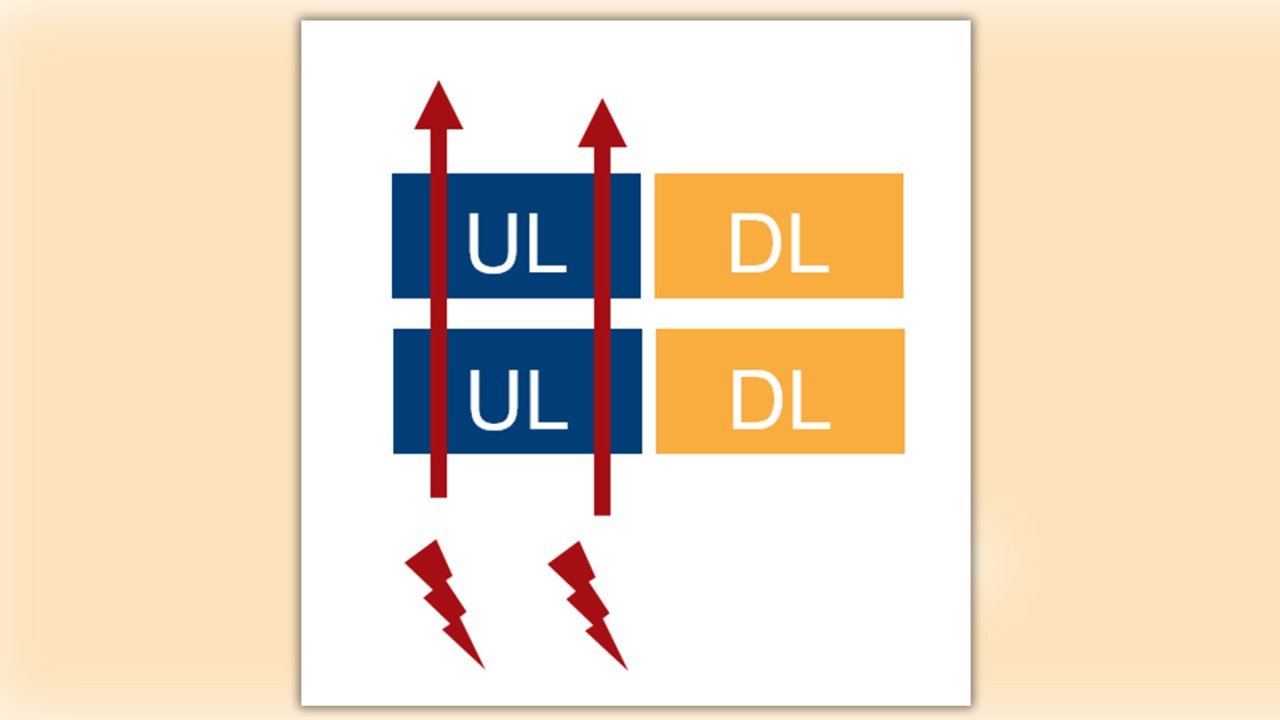

Figure 2: External interference hitting the uplink slots in a TDD network
With the R&S®TSMx6 network scanner platform, this is easy. From the system information, the instrument is able to read the periodicity, slots and symbols reserved for uplink and downlink transmissions in the TDD network. Once detected, the network scanner synchronizes to the TDD transmission pattern, applies a time-gate and delivers a real-time spectrum of the configured time-gate, e.g. of the uplink.

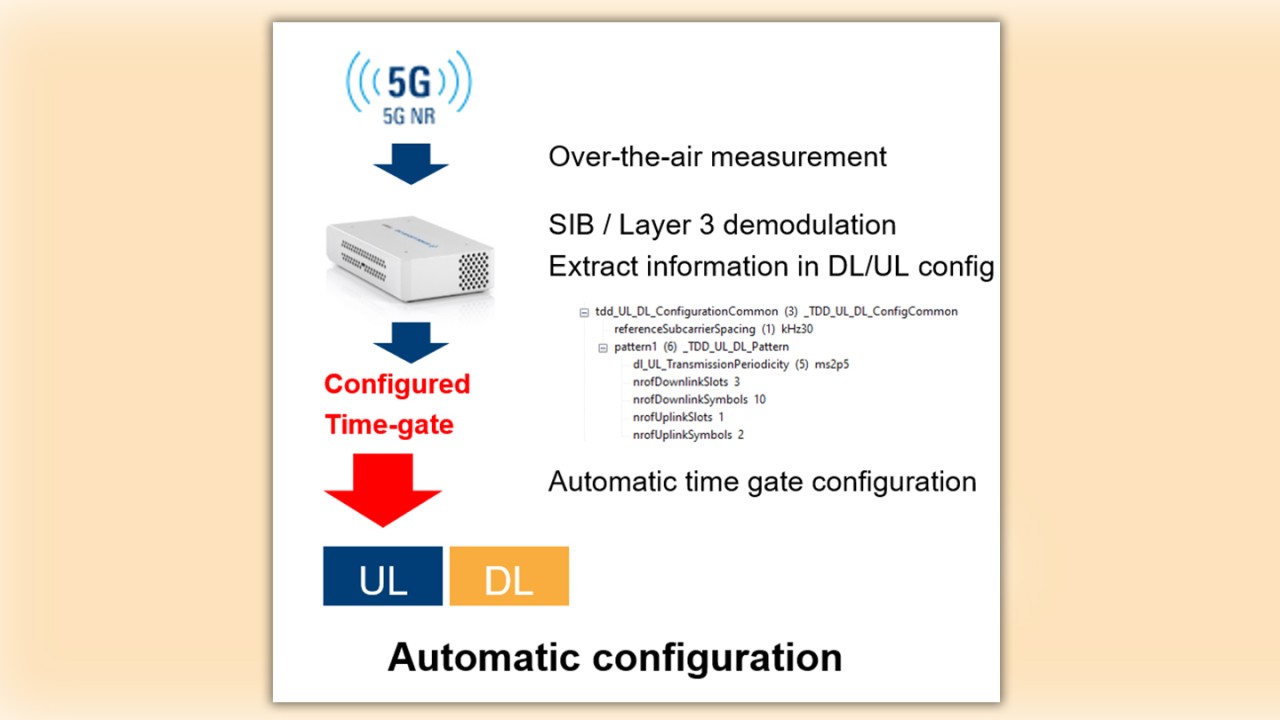

Figure 3: Automatic configuration of the time-gate with the help of the system information broadcast by the network
Applying a time-gate is like fading out all other time slots such as the downlink and the guard period. The result is a pure uplink spectrum. Of course, the time-gate can also be applied on the downlink and / or guard period, for example in order to visualize traffic in the downlink or to check if the guard period is maintained.

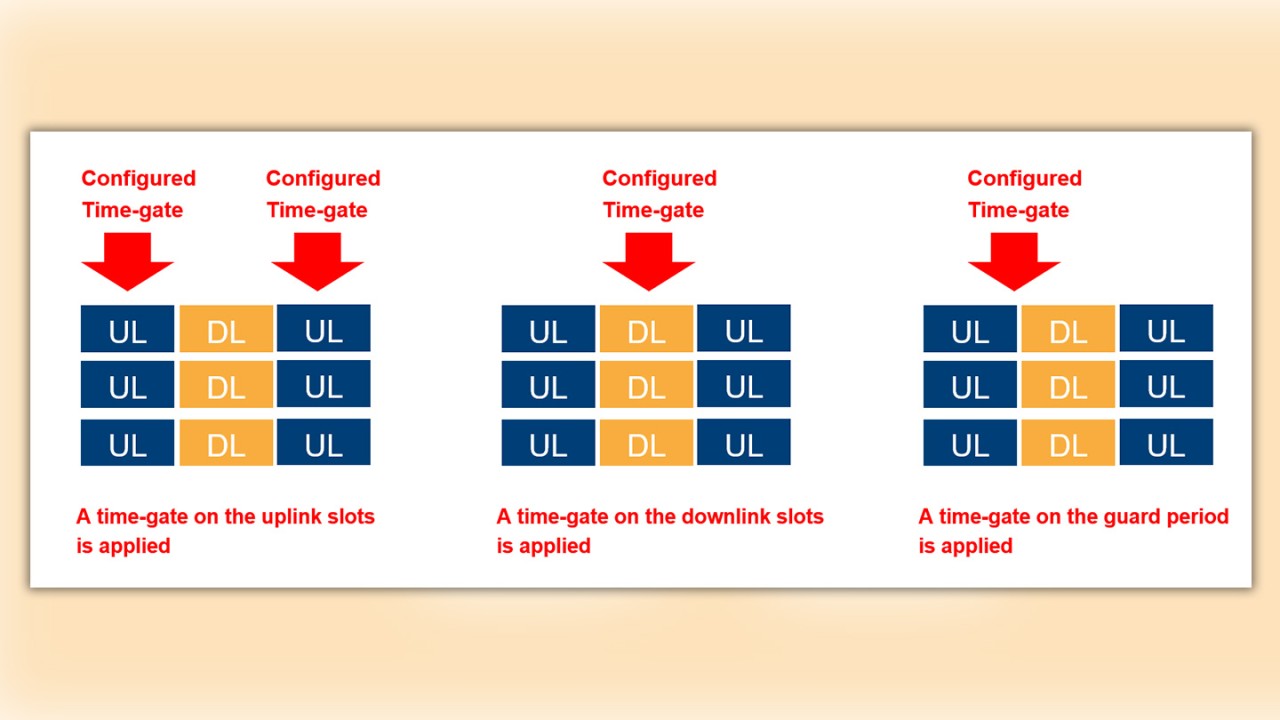

Figure 4: Time-gate positions
The real-time spectrum on the frequency domain can be visualized in a panoramic view, which covers max. +/100 MHz apart from the 5G SSB center frequency, or in a so-called hunting view which covers a spectrum of max. 9.6 MHz bandwidth in order to focus on the interference source. This is the perfect view to start hunting the interference, for example by walking around with a directional antenna.
Figure 5: Panoramic view (frequency domain) with graph and waterfall diagram with a bandwidth of max. 200 MHz and the uplink time-gate applied. Uplink transmissions can be seen within the red rectangle.
External interference can occur irregularly or periodically. In many cases, this allows conclusions to be drawn with regard to the interference source. The behavior in the time domain can be verified by a second view, the so-called time-periodic view. It visualizes the time-gated spectrum in the time domain within a user-configurable period of time (e.g. 10 ms). With the help of this time-periodic view, the user is able to draw conclusions with regard to the periodicity of the interfering signals in the time domain.

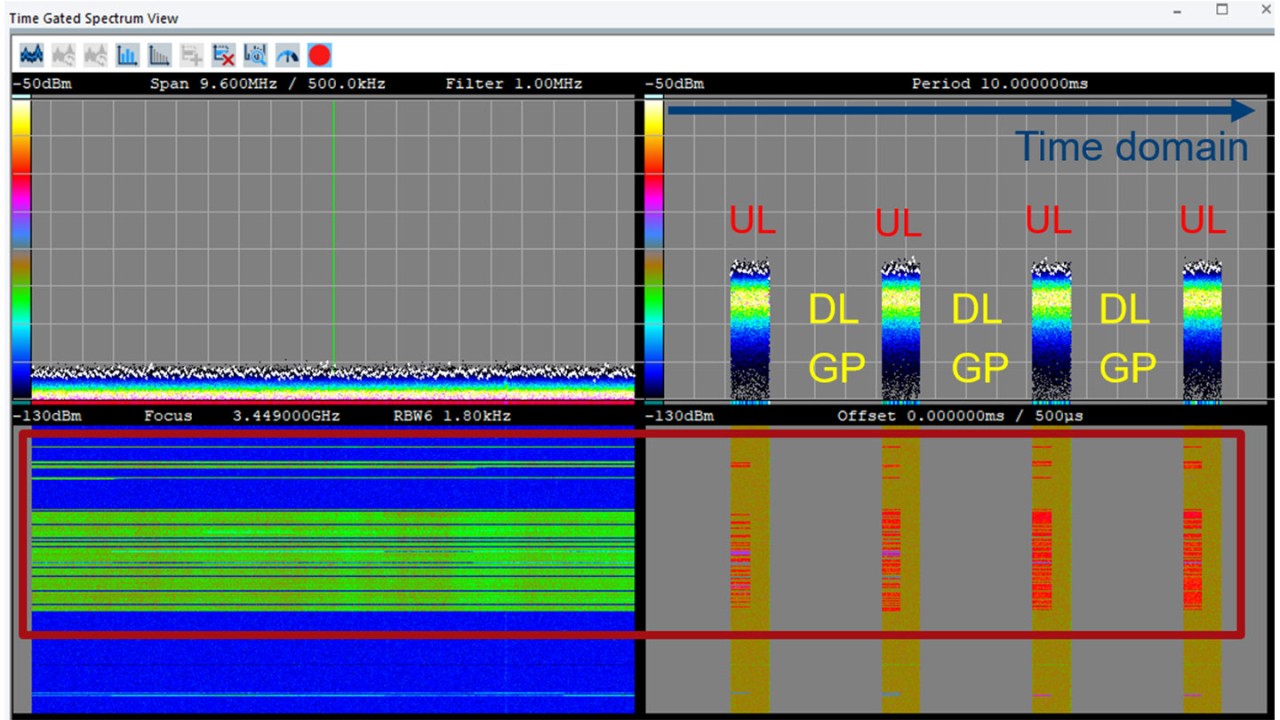

Figure 6: Hunting view with max. 9,6 MHz bandwidth in the frequency domain (left part) and in the time domain (right part). The time-gate fades out downlink transmissions and the guard period. In the left part, uplink transmissions are shown in green in the frequency domain in the waterfall diagram. The corresponding view in the time domain shows the uplink transmissions in red in the waterfall diagram.
In combination with the metrics for internal interference such as SINR and TAE measurements, the R&S®TSMx6 network scanner family provides a perfect tool for classifying, narrowing down and hunting internal and external interference. With its ability to decode system information messages and to synchronize to the radio frames, the system simplifies interference detection and hunting.
