Automotive radar module and sensor production testing

Maximum automotive radar production yield and performance starts with precise measurements

Increasing demand for automotive radar sensors driven by the large number of radar modules in modern vehicles has led to double-digit growth in radar module production. Accurate and high-performance test equipment enables optimized margins and higher yield in production and this is key as sensor suppliers compete to offer ever-more demanding price-performance points.

Rohde & Schwarz trusted test and measurement solutions are used by almost all leading suppliers of automotive radar modules. Applying leading-edge test technology in production ensures compliance with performance specifications, maximizes yield and helps your competitiveness.

If you would like further information about our test solutions, please contact us.

Contact us

Your challenges in automotive radar production:

Implement a cost-efficient radar production test system with optimized test time and maximized yield
Development of calibration procedure in anechoic reference environment for automotive radar production
Small form-factor production tester even for large aperture sensors

Features of our radar test solutions:

Compact antenna test range (CATR) reflector with a quiet zone up to 30 cm for radar sensors with large antenna apertures.
High precision target simulators in 76 to 81 GHz range with configurable RCS and velocity
Highest accuracy power-sensors, field-proven in EOL production

Benefits of our automotive radar production test solutions:

Small form-factor compact antenna test range (CATR) chamber saves space in the factory
Better production yield of automotive radar sensors due to lower margin significantly reduces cost
Using the same test equipment in research and development and production reduces time-to-market

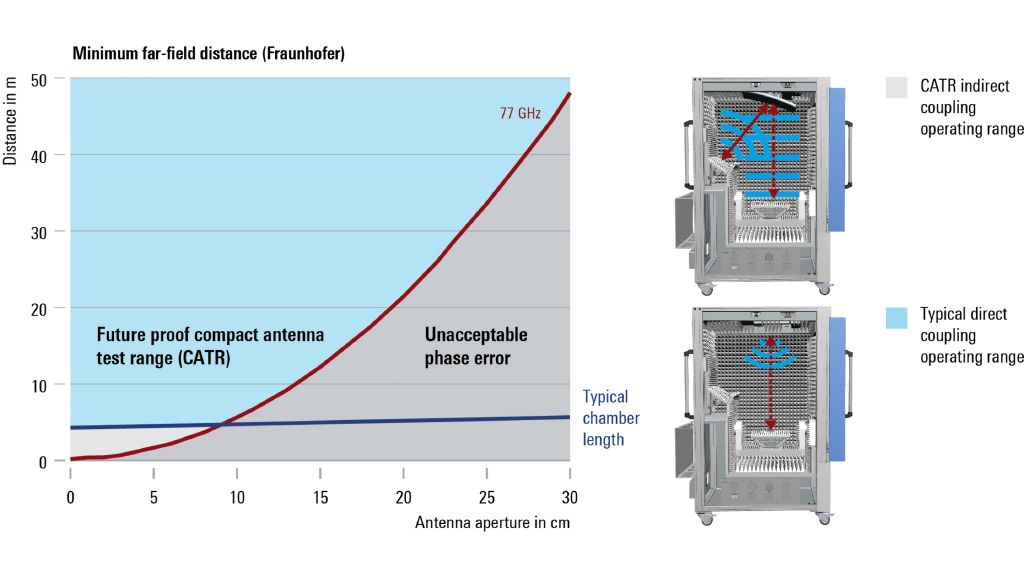

Compact antenna test range (CATR) reflector quiet zone up to 30 cm

/

Compact antenna test range (CATR) reflector quiet zone up to 30 cm

Featured products for radar module production testing

R&S®AREG100A automotive radar echo generator

Supports 24 GHz, 77 GHz and 79 GHz automotive radar sensors
Future proof with instantaneous bandwidths of up to 4 GHz
4 m minimum artificial object distance for short range radar testing

Product information

R&S®AREG800A automotive radar echo generator

Generation of multiple dynamic artificial objects with individual distance, object size, radial velocity and angular direction
Fully harmonized with R&S®QAT100 advanced antenna array and classical mmW frontends for advanced tests in all automotive radar bands
Future proof with instantaneous bandwidths of up to 4 GHz

Product information

R&S®NRPM OTA power measurement solution

Frequency range from 18 GHz to 90 GHz
Extremely fast RX list mode
For 5G, WLAN IEEE 802.11ad and IEEE 802.11ay as well as automotive radar

Product information

R&S®ATS1500C antenna test chamber for automotive radar

In-band OTA measurements of 77/79 GHz automotive radar sensors
CATR with bidirectional parabolic reflector and a 1.3 m2 footprint
For testing radar modules with apertures up to 30 cm

Product information

R&S®FPL1000 spectrum analyzer

Frequency range 5 kHz to 26.5 GHz
SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz
DANL with preamplifier: typ. –163 dBm from 10 MHz to 2 GHz

Product information
