Full-vehicle antenna testing

Custom solutions for vehicle antenna testing and verification

Modern vehicles feature a multitude of antennas for different technologies. Placed at various locations inside and outside the vehicle, these high-performance antennas enable connectivity for features such as satellite navigation (GNSS), Wi-Fi, UWB (RKE) and cellular services (eg C-V2X) among many others.

All of these high-performance antennas require full-vehicle antenna testing, not only to ensure their proper positioning, reduce wiring and save costs, but also to ensure optimal radiation patterns and reduce electromagnetic interference (EMI).

Rohde & Schwarz offers customized full vehicle antenna test systems and services that meet even the most demanding applications and are relied upon by vehicle manufacturers around the world.
If you have any questions, please contact us.

Your testing challenges

Component suppliers and vehicle manufacturers require detailed testing of integrated antennas to ensure optimal radiation patters and safe and reliable operation of all a vehicle’s wireless technologies. This is particularly demanding because the shape and material of a vehicle influences the performance of antennas.

The antenna performance needs to be verified in a controlled RF environment, such as an indoor EMC test chamber that provides over-the-air (OTA), full-vehicle and real-world scenario testing.

Leading-edge full vehicle antenna testing solutions

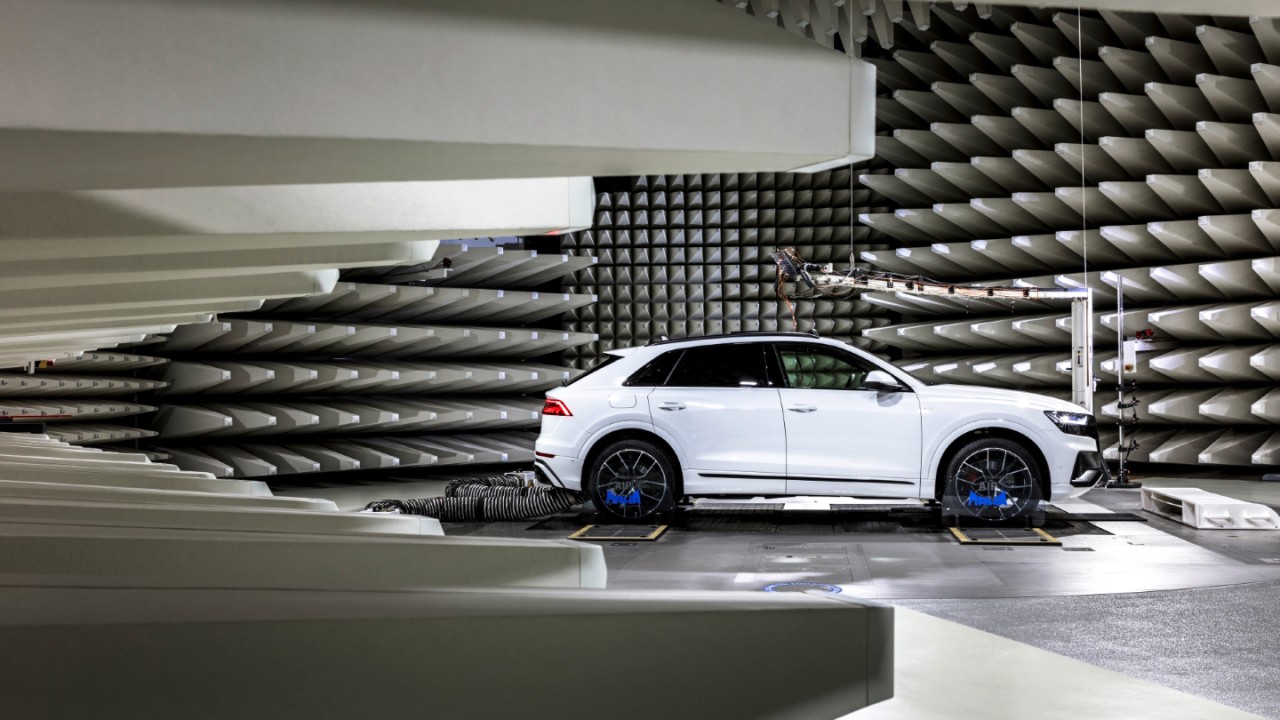

Rohde & Schwarz offers customized high-performance anechoic EMC test chamber solutions for performing high-precision, reproducible full-vehicle antenna testing, providing full 3D characterization of the vehicle’s radiation pattern.

The turnkey system comprises turn table, vehicle lift and a single-probe moving antenna arm with two-axis positioner, passive and active antenna measurements, with all the accompanying software solutions for the automatic control, measurement sequencing and reporting.

As a world leader in EMC and over the air (OTA) testing, Rohde & Schwarz FVAT solutions are able to adapt to any unique challenges and possible applications.

Benefits of Rohde & Schwarz FVAT solutions:

One-stop shop offering turn-key solutions tailored to your needs, including the system design, setup, training and calibration by regional specialist service centers
Reliable and fast measurements by optimized use of leading-edge Rohde & Schwarz test products and software
Future-proof solution by the EMC and OTA testing market leader for the earliest possible integration of new wireless standards

"Modern vehicles require a large number of high-performance antennas and integrated antenna modules to handle all the modern broadcast and infotainment services as well as car communication and control. Rohde & Schwarz offers the leading-edge, turn-key solutions for testing and verifying these antennas as an integral part of the vehicle."

Benoît Derat, Senior Director of Development for EMC, OTA and Antenna Test Systems at Rohde & Schwarz
