5G network testing

5G NR network measurements

5G New Radio (NR) is the radio access technology for the next generation mobile communication standard. It differs from LTE in the following ways:

New frequency bands below and above 6 GHz, promising globally available frequency ranges, with the principle ones being 3.3 to 4.2 GHz and 26 to 44 GHz
Beamforming support for synchronization signals / broadcast and data channels, in combination with 5G NR multiple input multiple output (MIMO) for data channels
Wide flexibility of physical radio parameters, such as channel bandwidth, subcarrier spacing and symbol duration

These characteristics have an impact on signal propagation and quality, consequently increasing the need for accurate 5G NR network testing.

Contact us

Your 5G network testing challenges

Testing 5G networks presents unique challenges that demand strategic solutions. Key challenges associated with 5G network testing include:

5G network coverage: The initial rollout of this advanced technology is concentrated within closed coverage areas. Regulators now consider both reference signal received power (RSRP) and expected data throughput.
Achieving optimal 5G network performance: The high degree of flexibility in 5G necessitates thorough performance tuning during rollout to achieve intended performance. It is crucial to verify the handover area between sites, cells and beams to ensure the best possible network capacity.
Interference: Predominant use of time division duplex (TDD) mode in 5G networks introduces interference concerns. Strict network synchronization is necessary to prevent interference between base stations and between networks of different operators.

/

High-performance solutions for 5G network testing

Navigating the complexities of 5G networks necessitates testing during all phases of the network life cycle. 5G NR network measurements allow operators to deploy and operate networks faster and provide superior network quality. Rohde & Schwarz offers a comprehensive 5G mobile network testing portfolio, with solutions for both passive and active tests:

The R&S®TSMx6 network scanner family and the R&S®5G Site Testing Solution (STS) support the passive testing method. With this method, it is possible to get an overview of all “always-on” DL signals in the area using automatic channel detection (ACD), which involves decoding broadcast channel information and RF parameters such as signal strength and quality. All base station signals (cells and beams) can also be analyzed. SIM cards are not needed for passive tests with network scanners.
The QualiPoc Android software supports active tests. This requires a network connection. The network performance can be measured in terms of application quality of experience (QoE) or quality of service (QoS), which includes data throughput and latency.

Rohde & Schwarz also offers software for data analytics and quality monitoring:

SmartAnalytics : software suite for data analytics
SmartMonitor : software for quality monitoring and fleet management

/

Benefits of our 5G network testing solutions

Rohde & Schwarz 5G network testing solutions offer many advantages for streamlined and effective network optimization.

Network scanners - R&S®TSMx6 family and R&S®5G STS:

Signal overview: quickly identify all signals on the air interface with automatic channel detection (ACD) and high-speed 5G NR measurements
Signal details: analyze 5G base station signals (cells and beams) at high sensitivities, ensuring the presence of a dominant signal at every location to prevent intercell interference caused by pilot pollution
Interference reduction: verify 5G TDD network synchronization during 5G drive testing to ensure optimum network capacity

Handheld mobile network testing solution - QualiPoc Android SW:

User-perceived quality measurement: measure network performance in terms of application quality of experience (QoE) or quality of service (QoS)
Interactivity Test: employ standard test methods (ITU-T G.1051) to measure round-trip latency with various traffic patterns

Analytics software - SmartAnalytics:

Aggregation and trending: get high-level aggregation of benchmarking campaigns for easy trend identification
Statistical analysis: analyze benchmarking campaigns based on the network performance score
Drill-down capability: troubleshoot issues by drilling down into single samples of a measurement campaign

Webinars

Webinar: URLLC - how reliable are private 5G networks today?

Get insights into the performance and reliability of today’s 5G private networks.

Register now

Webinar: Apples to apples 5G network benchmarking -one year later

Learn about comparable network benchmarking and real-time interactive applications.

More information

Webinar: Verifying 5G enterprise networks – performance status based on real results

Get the latest on private 5G network performance - based on real measurement results.

More information

Webinar: Modernization of test methods for 5G network performance

Explore comparable network benchmarking and transparent test methods for network quality.

More information

Webinar: Open RAN – network performance in the lab and field

Discover O-RAN disaggregation aspects and the importance of T&M for an O-RAN network.

More information

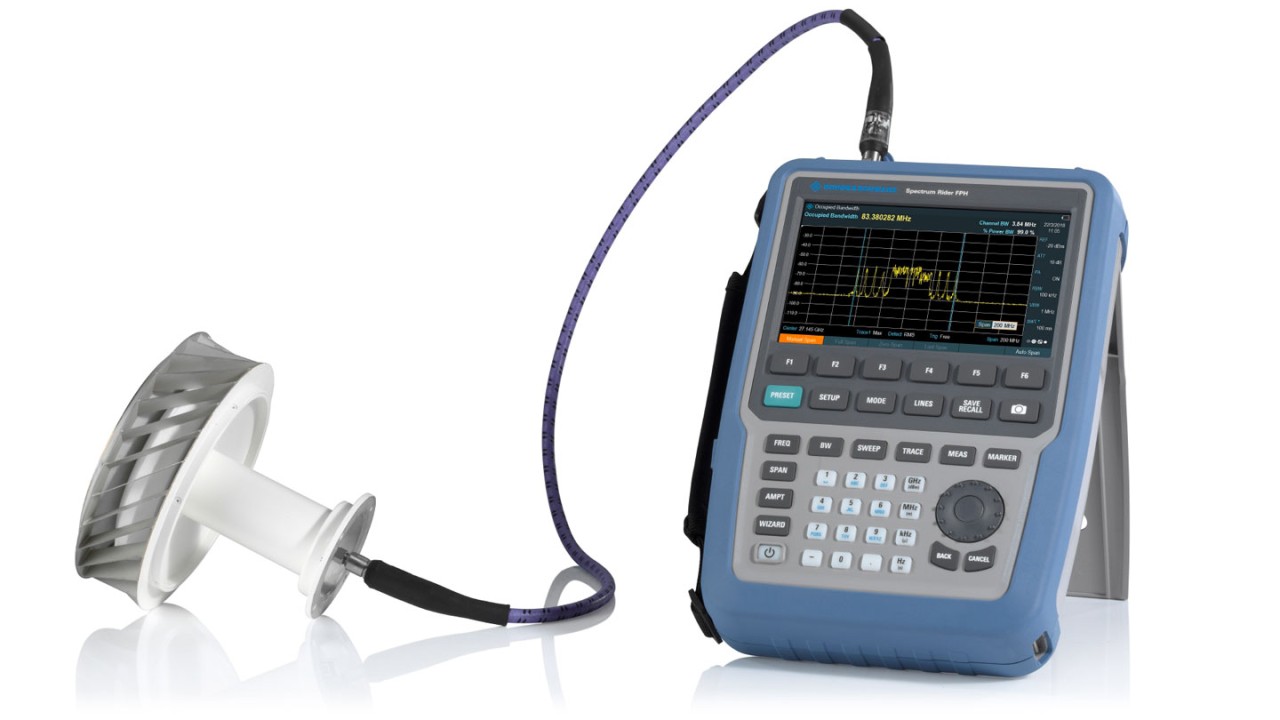

5G over-the-air measurements with the R&S Spectrum Rider FPH handheld microwave spectrum analyzer

/

5G over-the-air measurements with the R&S®Spectrum Rider FPH handheld microwave spectrum analyzer

The R&S®Spectrum Rider FPH handheld spectrum analyzer’s frequency coverage up to 44 GHz combined with features such as 6 hour battery life, low weight (2.5 kg), backlit keypad, fast boot time, non-reflective display and ruggedized housing make it optimized for field spectral measurements of 5G signals. The R&S®FPH combined with an appropriate antenna can make over-the-air 5G measurements including occupied bandwidth, spectral emission mask and channel power, thus making it capable of verifying 5G transmissions. With frequency coverage to 44 GHz, the R&S®FPH’s can also be used for spectrum clearance and interference hunting in new 5G bands.
