Automotive EMC compliance testing

Keep ahead of the revolution in car electronics with the market leaders in EMC

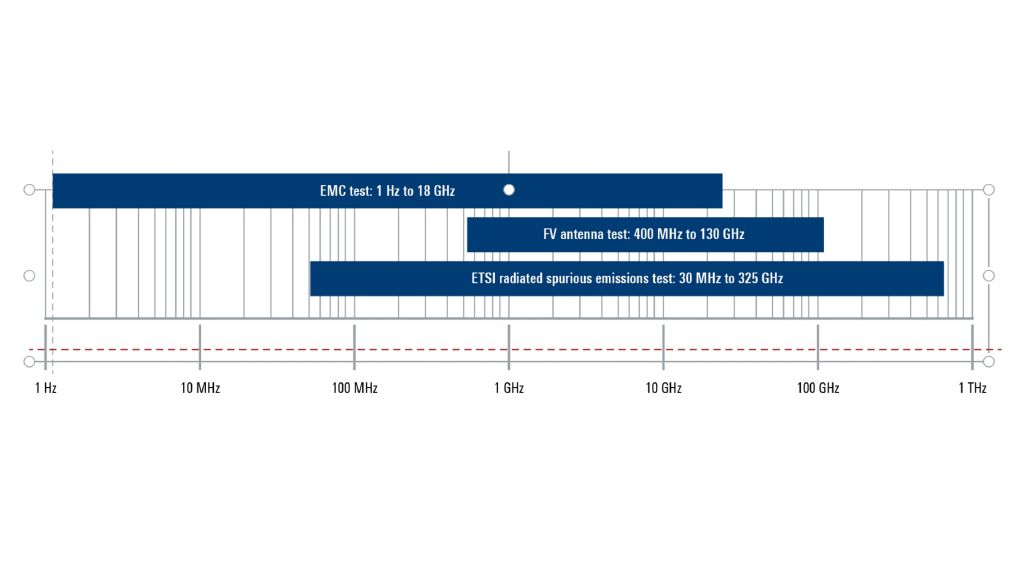

Vehicles are undergoing two revolutions at the same time: The development of Autonomous Driving (AD) and the emergence of Electric Vehicles (EV). Both are causing major changes to automotive EMC test standards such as increase in frequencies to 18GHz, and field strenghts up to 600V/m. Rohde & Schwarz’s unrivalled EMC expertise ensures we provide you with market-leading test instruments, software and customized systems covering the latest developments in automotive standards and technology.

If you would like further information, please contact us.

Contact us

Your automotive EMC challenges:

As part of homologation, execute regulatory tests according to UN ECE R10 and keep up with the latest EMC standards, for example CISPR, ISO, SAE, GB/T or OEM-specific, particularly for electric vehicles and advanced radar.
Automated tests in various active driving conditions (dynamic scenarios) need to be supported, e.g. recuperation.
Take account of new semiconductor technologies such as SiC with far higher switching speeds and steep rising edges which greatly increase the likelihood of spurious emissions.
Ensure maximum utilization of test resources, for example re-use EMC test equipment for ADAS functional test.
Increasing integration of wireless technologies into vehicles create a dense radio environment, vulnerable to coexistence issues.

/

Our Automotive EMC test solution features:

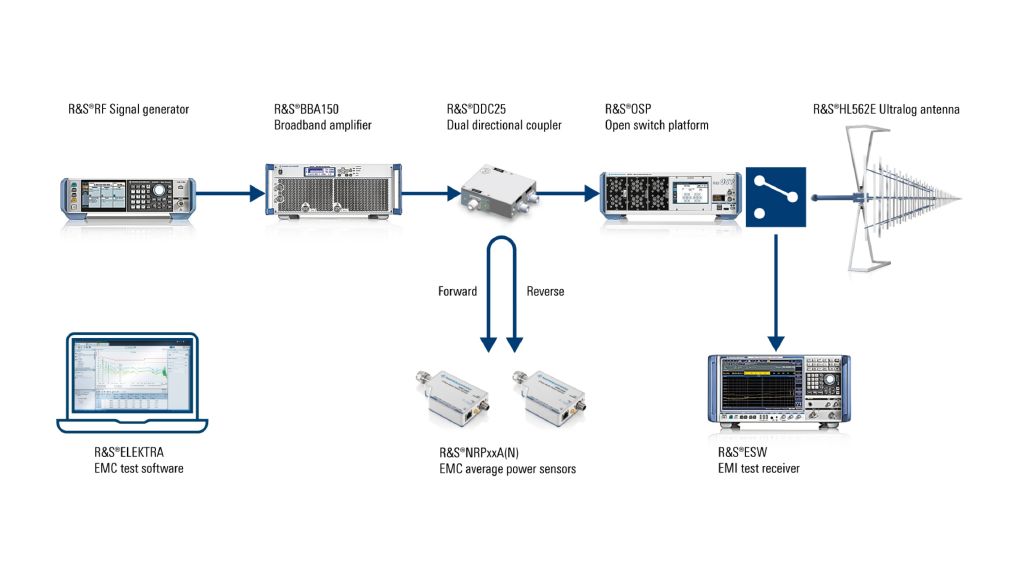

All the necessary control software, instruments and accessories from a single suppler for implementing, automating, and reporting the results of EMC test programs.
Test equipment fully compliant to all EMI and EMS standards relevant for automotive applications, including ISO11451, ISO11452, ISO21498, ISO/TS 7637, CISPR11, CISPR12, CISPR 25 & CISPR 36.
Inhouse project consultancy, planning, installation, training, service and support by regional test system experts from R&S systems centers in Europe, North America and Asia.

/

Your benefits:

Time savings and wider test coverage due to automation of dynamic scenarios testing using R&S®ELEKTRA
High utilization rate as the equipment can be used for both functional ADAS/AD tests and regulatory EMC tests
Future proof a migration path from EMC to ADAS/AD functional testing is possible by reuse of GNSS signal generators, roller test bench and associated software
Efficiency from using a single supplier for your complete EMC test programs - from pre-conformance EMI to full EMC compliance, design, service and support and training
Complete confidence from using EMC test equipment 100% compliant to the relevant standards from the de facto supplier

Our Experts & Partners

Jens Medler, Product Manager, EMC and Antenna Test

EMC is all about standards. We currently see many changes in automotive EMC standards for addressing the electromagnetic compatibility of electric vehicles and electric hybrid vehicles such as the charging mode and the integration of vehicles in a connected world. Enforcement of strict EMC limits can delay product certification, leading to lost revenue, added cost, and redesign headaches. R&S EMI Test Receivers and EMC test solutions determine the causes and effects of electromagnetic interference and ensure compliance with the relevant EMC standard.

Wolfram Titze, Product Manager, Broadcast and Amplifier Solutions

“Due to the rapid development of electromobility and the generally growing number of connected electronic components in the car, electromagnetic susceptibility tests play an important role in the automotive industry. Successful tests guarantee reliable operation of the vehicle in an increasingly challenging electromagnetic environment. High power broadband amplifiers from R&S play an essential role in the test system set-up of our customers to meet current and future test challenges of their industry”

Automotive EMC testing videos

Webinar: Automotive EMC testing under dynamic driving conditions

Join this webinar to learn more about eDrive development, the importance of dynamic EMC testing, automotive EMC testing overview and its challenges.

More information

Webinar: Latest developments in CISPR Automotive EMI standards

This webinar adresses the applicability of FFT-based receivers for EMI compliance measurements against international standards, gives an inside view on the technology of such receivers and will conclude with practical use cases.

More information

Automotive measurements with R&S®ELEKTRA

Application Video: Elektra EMC software for automotive measurements

This video provides a general introduction to our new EMC software R&S®ELEKTRA and highlights some features with are relevant for automotive standards

Opt for powerful Rohde & Schwarz oscilloscopes that excel in usability and functinality analyzing time domain, mixed signals, serial buses and frequency.

Product information

Related information

Full-vehicle antenna testing

Customized full vehicle test (FVAT) systems to ensure correct antenna positioning and optimal radiationpatterns and to reduce electromagnetic interference.

More information
